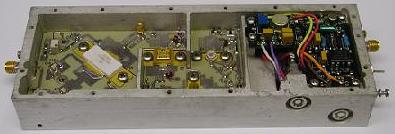

HIGH POWER AMPLIFIERS

























Hit Counter



<--Back
OPTIONS AVAILABLE:
1. OTHER FREQUENCY BANDS.
2. CUSTOM PACKAGING TO YOUR REQUIREMENTS.
Model Number Frequency BW Power In Power Out Pout Watts Idc Vdc

PA225-400-1W 225-400 MHz 175 MHz +5 dBm +30 dBm 1 W 0.4 / 0.3 A +5 / +26 V
PA225-400-20W 225-400 MHz 175 MHz 0 dBm +40 dBm 10 W 0.1 / 2.5 A +5 / +26 V
PA1700-1W 1.70 GHz  +/- 30 MHz -10 dBm +30 dBm 1 W 0.40  A +22 V
PA1700-50W 1.70 GHz  +/- 30 MHz +29 dBm +47 dBm 50 W 9.80  A +28 V
PA1800-1W 1.80 GHz  +/- 25 MHz -10 dBm +30 dBm 1 W 0.40  A +22 V
PA2600-20W 2.60 GHz     +/- 100 MHz +33 dBm +43 dBm 20 W 6.0 A +12 v
PA2600-20WA 2.60 GHz     +/- 100 MHz 0 dBm +43 dBm 20 W 7.5 A +12 V
PA3300-6W 3.30 GHz    +/- 200 MHz +30 dBm +38 dBm 6 W 5.0 A +12 V
PA3300-6WA 3.30 GHz   +/- 200 MHz 0 dBm +38 dBm 6 W 7.5 A +12 V
PA3650-20W 3.65 GHz    +/- 250 MHz +35 dBm +43 dBm 20 W 10.0 A +12 V
PA3650-20WA 3.65 GHz    +/- 250 MHz 0 dBm +43 dBm 20 W 14.0 A +12 V
PA4700-5W 4.70 GHz    +/- 250 MHz 0 dBm +37 dBm 5 W 3.5 A +12 V
PA4700-20W 4.70 GHz    +/- 250 MHz 0 dBm +43 dBm 20 W 14.0 A +12 V
PA5250-20W 5.25 GHz    +/- 100 MHz 0 dBm +43 dBm 20 W 8.00  A +12 V
PA5800-50W 5.80 GHz +/- 50 MHz 0 dBm +50 dBm 100 W 20.00  A +12 V
