      LOW NOISE AMPLIFIERS

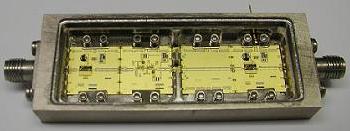

                                                AdComm Inc. specializes in the design and production of Low Noise
                                                Amplifiers. We manufacture a broad line of Low Noise Amplifiers in the most
                                                popular frequency bandwidths. AdComm Inc. Low Noise Amplifiers are built utilizing
                                                coplanar waveguide technology, which provide for increased reliability and repeatability.
                                                Unparalleled broadband performance within the smallest package size
                                                available in the industry.
                                                With our Low Noise Amplifier product line AdComm Inc can meet most program
                                                requirements rapidly and inexpensively by customizing one of our existing designs.
                                                Below is a list of our most popular Low Noise Amplifiers models.



<--Back





OPTIONS AVAILABLE:
1. OTHER FREQUENCY BANDS.
2. CUSTOM PACKAGING TO YOUR REQUIREMENTS.
AdComm Part No. Frequency Gain, min dB Flatness, dB p-p Noise Figure, dB P1dB, dBm Idc, mA Vdc Outline
LNA0204G30 225-400 MHz 30 1.0 1.3 2.0 50 +12 V        7
LNA08517G20 0.85-1.7 GHz 20 1.5 1.2 8.0 50 +12 V 6
LNA12G34 1.0-2.0 GHz 34 2.0 1.3 8.0 90 +12 V 6
LNA23G20 2.0-3.0 GHz 20 1.5 1.3 8.0 50 +12 V 6
LNA254G20 2.5-4.0 GHz 20 1.5 1.5 8.0 50 +12 V 6
LNA812G36 8.0-12.0 GHz 20 2.5 2.2 12.0 120 +12 V 6
LNA1218G9 12.0-18.0 GHz 9 1.5 4.0 8.0 70 +12 V 1
LNA218G11 2.0-18.0 GHz 11 1.5 4.0 10.0 70 +12 V 1
LNA220G15 2.0-20.0 GHz 15 2.5 4.8 12.0 100 +12 V 1




             MECHANICAL SPECIFICATIONS













  Length Length Width Width Height Height
OUTLINE # DIM 'A' (in) DIM 'A' (mm) DIM 'B' (in) DIM 'B' (mm) DIM 'B' (in) DIM 'B' (mm)
1 1.0 25.4 1.0 25.4 0.2 5.6
2 1.5 38.1 1.0 25.4 0.2 5.6
3 2.0 51.8 1.0 25.4 0.2 5.6
4 2.5 63.5 1.0 25.4 0.2 5.6
5 3.8 96.5 1.0 25.4 0.2 5.6
6 1.5 38.1 0.9 22.9 0.2 5.6
7 1.9 48.3 1.4 35.6 0.5 12.1
