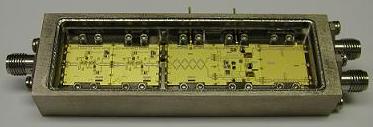

            LIMITING AMPLIFIERS







                                                AdComm Inc. specializes in the design and production of Limiting Amplifiers
                                                in the most popular frequency bandwidths.  AdComm Inc. Limiting Amplifiers are
                                                built utilizing coplanar waveguide technology, which provide for increased reliability
                                                and repeatability. Unparalleled broadband performance within the smallest
                                                package size available in the industry.
                                                With any of our amplifier lines AdComm Inc can meet most program
                                                requirements rapidly and inexpensively by customizing one of our existing designs.
                                                Below is a list of our most popular Limiting Amplifiers models.



<--Back
AdComm Part No. Frequency Gain, min dB Flatness, dB p-p Noise Figure, dB P1dB, dBm Idc, mA Vdc Outline

A052G36 0.5-2.0 GHz 36 3.0 4.5 20.0 300 +12 V 3
A24G36 2.0-4.0 GHz 36 3.0 3.7 20.0 300 +12 V 3
A26G36 2.0-6.0 GHz 36 3.5 3.7 20.0 300 +12 V 3
A28G36 2.0-8.0 GHz 36 3.5 3.7 20.0 300 +12 V 3
A218G36 2.0-18.0 GHz 36 4.0 5.5 18.0 350 +12 V 3
A48G36 4.0-8.0 GHz 36 3.0 3.7 20.0 350 +12 V 3
A712G32 7.0-12.4 GHz 32 2.7 4.5 17.0 250 +12 V 3
A618G36 6.0-18.0 GHz 36 4.5 4.8 18.0 300 +12 V 3
A818G36 8.0-18.0 GHz 36 3.7 4.5 18.0 300 +12 V 3
A052G70 0.5-2.0 GHz 70 4.0 4.5 20.0 550 +12 V 5
A24G70 2.0-4.0 GHz 70 4.0 3.7 20.0 550 +12 V 5
A26G70 2.0-6.0 GHz 70 4.0 3.7 20.0 550 +12 V 5
A28G70 2.0-8.0 GHz 70 4.0 3.7 20.0 570 +12 V 5
A218G70 2.0-18.0 GHz 70 5.5 5.5 18.0 600 +12 V 5
A48G70 4.0-8.0 GHz 70 4.0 3.7 20.0 600 +12 V 5
A712G70 7.0-12.4 GHz 70 4 4.5 17.0 570 +12 V 5
A618G70 6.0-18.0 GHz 70 4.5 4.8 18.0 600 +12 V 5
A81870 8.0-18.0 GHz 70 5 4.5 18.0 600 +12 V 5
A219G70 2.0-19.0 GHz  70 6.0 5.5 18.0 600 +12 V 5
OPTIONS AVAILABLE:
1. OTHER FREQUENCY BANDS.
2. CUSTOM PACKAGING TO YOUR REQUIREMENTS.
