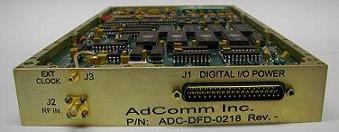

AdComm Model No. ADC-0713 ADC-1020 ADC-1060 ADC-2040 ADC-2060 ADC-4080
Operating Frequency 0.75 to 1.25 GHz 1.0 to 2.0 GHz 1.0 to 6.0 GHz 2.0 to 4.0 GHz 2.0 to 6.0 GHz 4.0 to 8.0 GHz
Frequency Number Bits 11 12 12 12 12 10
Frequency Resolution 0.3125 MHz 0.25 MHz 1.3916 MHz 0.977 MHz 1.1719 MHz 5 MHz
Frequency Accuracy 1.0 MHz (RMS) 0.30 MHz (RMS) 3.0 MHz (RMS) 2.0 MHz (RMS) 2.0 MHz (RMS) 5.0 MHz (RMS)
    Peak Error 1M Max
RF Input Dynamic Range -60 to 10 dBm -60 to 10 dBm -70 to 5 dBm -70 to 5 dBm -70 to 5 dBm -65 to 5 dBm
RF Pulsewidth Range   50ns. To C.W. 50ns. To C.W.    100ns. To C.W.     50ns. To C.W.     50ns. To C.W.       50ns. To C.W.
Unambiguous Bandwidth 640 MHz 1024 MHz    5700 MHz    4002 MHz    4800 MHz    5120 MHz
Simultaneous Signals  6 dB     6 dB     6 dB     6 dB    6 dB    6 dB
Signal To Noise Ratio 3 3 2 3 3 3
Clock Input  Ext 5 Clks 25MHz           External         External          External External Ext 5 Clks 20MHz
Output Flags      Data Ready        Data Ready    Low Band Edge   Low Band Edge Low Band Edge Low Band Edge
Other Flags:  Data Acknowledge  Data Acknowledge    High Band Edge   High Band Edge High Band Edge High Band Edge
                 FMOP    Signal Present     Signal Present       Invalid Data     Invalid Data Invalid Data Invalid Data
                 PMOP      Invalid Data       Invalid Data
D.C. Power      +5.0V @ 1.0A     +5.0V @ 1.0A     +5.0V @ 1.0A     +5.0V @ 1.0A     +5.0V @ 1.0A     +5.0V @ 1.0A
        -5.2V @ .50 A      -5.2V @ .50 A      -5.2V @ .50 A      -5.2V @ .50 A      -5.2V @ .50 A      -5.2V @ .50 A
       +12V @ .75A     +12V @0 .50A     +12V @ 1.0 A     +12V @ 1.0 A     +12V @ 1.0 A     +12V @ 1.0 A
Operating Temperature  -10C to +70C -10C to +70C 0C to +70C 0C to +70C 0C to +70C 0C to +70C
Unit Size Inches 7W 12L  2H 7W 12L 1.5H 7W 12L 2.1H 7W 12L 1.89H  7W 12L 1.89H 4.7W 7.2L 0.80H















     DFD's 2



<--Back



AdComm Model No. ADC-80110 ADC-80120 ADC-2060 ADC-60180 ADC-20180 ADC-20190
Operating Frequency 8.0 to 11.0 GHz 8.0 to 12.0 GHz 2.0 to 6.0 GHz 6.0 to 18.0 GHz 2.0 to 18.0 GHz 2.0 to 19.0 GHz
Frequency Number Bits 12 12 14 13 14 14
Frequency Resolution 1 MHz 1 MHz 0.750 MHz 1.5747 MHz 1 MHz 1.125 MHz
Frequency Accuracy 2.0 MHz (RMS) 1.5 MHz (RMS) 2.0 MHz (RMS) 3.0 MHz (RMS) 3.0 MHz (RMS) 3.5 MHz (RMS)
RF Input Dynamic Range -10 to 10 dBm -40 to 10 dBm -65 to 5 dBm -65 to 5 dBm -68 to 5 dBm -50 to 5 dBm
RF Pulsewidth Range 100ns. To C.W. 100ns. To C.W. 100ns. To C.W. 50ns. To C.W. 50ns. To C.W. 50ns. To C.W.
Unambiguous Bandwidth    4096 MHz    4096 MHz  12288 MHz    12900 MHz    16384 MHz    18432 MHz
Simultaneous Signals     6 dB     6 dB     6 dB     6 dB    6 dB    6 dB
Signal To Noise Ratio 3 3 3 2 -1 2
Clock Input  Internal/External  Internal/External  Internal/External          External  Ext 6 Clks 40Mhz   Ext 6 Clks 50Mhz
Output Flags       Data Ready      Data Ready      Data Ready    Low Band Edge     Invalid Data 1     Invalid Data 1
Other Flags: Data Acknowledge Data Acknowledge Data Acknowledge    High Band Edge     Invalid Data 2     Invalid Data 2
                 FMOP    Signal Present    Signal Present    Signal Present       Invalid Data     Invalid Data 3     Invalid Data 3
                 PMOP     Invalid Data      Invalid Data      Invalid Data
       C.W. Alarm        Out Band
D.C. Power     +5.0V @ 0.75A     +5.0V @ 0.75A      +5.0V @ 1.5A      +5.0V @ 1.0A      +5.0V @ 1.0A       +5.0V @ 1.0A
       -5.2V @ 0.50 A      -5.2V @ 0.50 A      -12V @ 0.50 A      -5.2V @ 0.50 A      -5.2V @ 0.50 A       -5.2V @ 0.50 A
       +12V @ 0.30 A     +12V @ 0.75 A      +12V @ 1.0 A      +12V @ 1.0 A      +12V @ 1.0 A       +12V @ 1.0 A
Operating Temperature -30C to +70C 0C to +70C -20C to +80C 0C to +70C 0C to +70C 0C to +70C
Unit Size Inches 7W 12L 2H 7W 12L 1.89H 6.5W 7.5L 1.5H 7W 12L 1.89H 7W 12L 1.5H 7W 12L 2.0H
OPTIONS AVAILABLE:
1. OTHER FREQUENCY BANDS.
2. CUSTOM PACKAGING TO YOUR REQUIREMENTS.
